Autoglo Australia AHD HD 1080P 10M Reverse Car Rear View Backup Parking Camera Waterproof IR

Autoglo Australia AHD HD 1080P 10M Reverse Car Rear View Backup Parking Camera Waterproof IR

Regular price $90.00 AUD
Regular price Sale price $90.00 AUD
Sale Sold out

Autoglo Australia AHD HD 1080P 10M Reverse Car Rear View Backup Parking Camera Waterproof IR

Fitment:
Universal fitment – Compatible with all vehicles that support RCA video input for rear-view camera systems (DC 12V systems).

Package Includes:
• 1 x AHD HD Rear View Camera
• 1 x 10M RCA Video Cable
• 1 x 1M Power Cable

Installation:
Simple wired installation. Connect to the car’s reverse light power and the RCA input of the head unit or display. Suitable for aftermarket stereos or monitors with RCA camera input.

Item Features:

  • High-definition AHD 1080P video quality
  • 170° wide-angle lens for maximum rear visibility

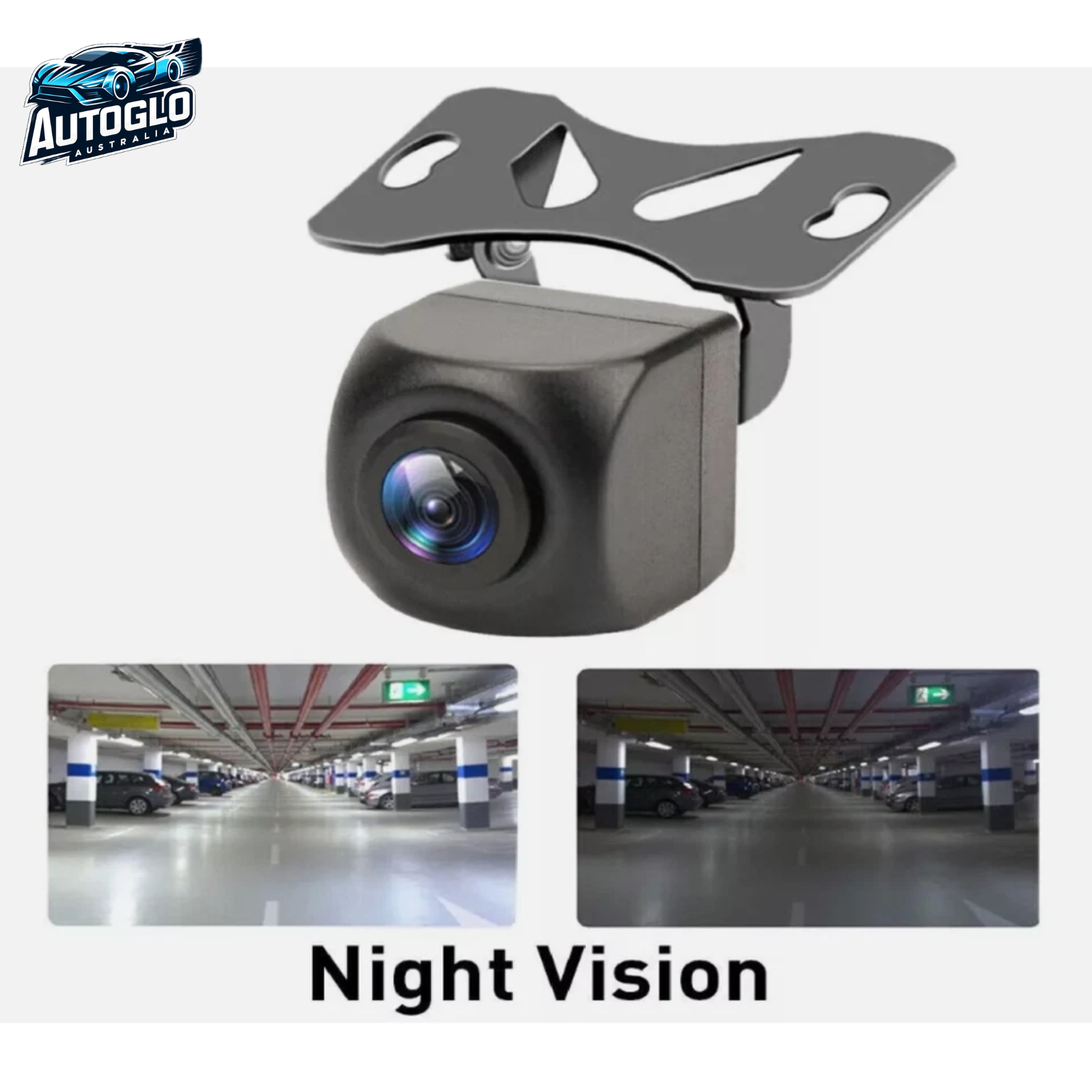

  • Infrared (IR) night vision for enhanced clarity in low light
  • Waterproof rating: IP68–IP69 for all-weather performance
  • Compact and discreet design
  • Supports automatic white balance, AGC, and BLC
  • Easy to install and operate
  • Designed to solve poor rear visibility issues
  • Durable build with low power consumption
  • Compatible with RCA phono input displays
  • Provides a clear and stable image for safe reversing

Specifications:

  • Sensor: PC7440 1/4" Color CMOS
  • TV System: NTSC
  • Effective Pixels: 1080P, 25fps
  • Scanning System: 2:1 Interlace
  • Synchronization: Internal
  • Resolution: 800 TV lines
  • Lens Angle: 2.8mm (120°) / 1.8mm (170°)
  • Sensor Area: 5.961mm × 4.276mm
  • Video Output: 1.0 VP-P, 75 Ohm
  • S/N Ratio: >48dB
  • Waterproof: IP68–IP69
  • Minimum Illumination: 0.2 Lux/F1.8 (0 Lux with LEDs)
  • Current Consumption: ≤300mA
  • Power Supply: DC 12V
  • Operating Temperature: -30℃ to 65℃ (RH95% Max.)
  • Storage Temperature: -40℃ to 75℃ (RH95% Max.)
  • Additional Features: Automatic white balance, AGC, BLC

Note:

  • Universal compatibility, but confirm stereo input type before purchase
  • This product is not returnable and non-refundable – choose carefully
  • Images shown are for illustration only and may vary slightly from the actual product

Warranty:
Manufacturer warranty of 12 months from the date of purchase
