Autoglo Australia AHD HD 1080P 15M Reverse Car Rear View Backup Parking Camera Waterproof IR

Autoglo Australia AHD HD 1080P 15M Reverse Car Rear View Backup Parking Camera Waterproof IR

Fitment:
Universal fit for all vehicles with RCA-compatible car stereo systems (Android head units recommended)
Suitable for rear installation; compatible with most DC 12V systems

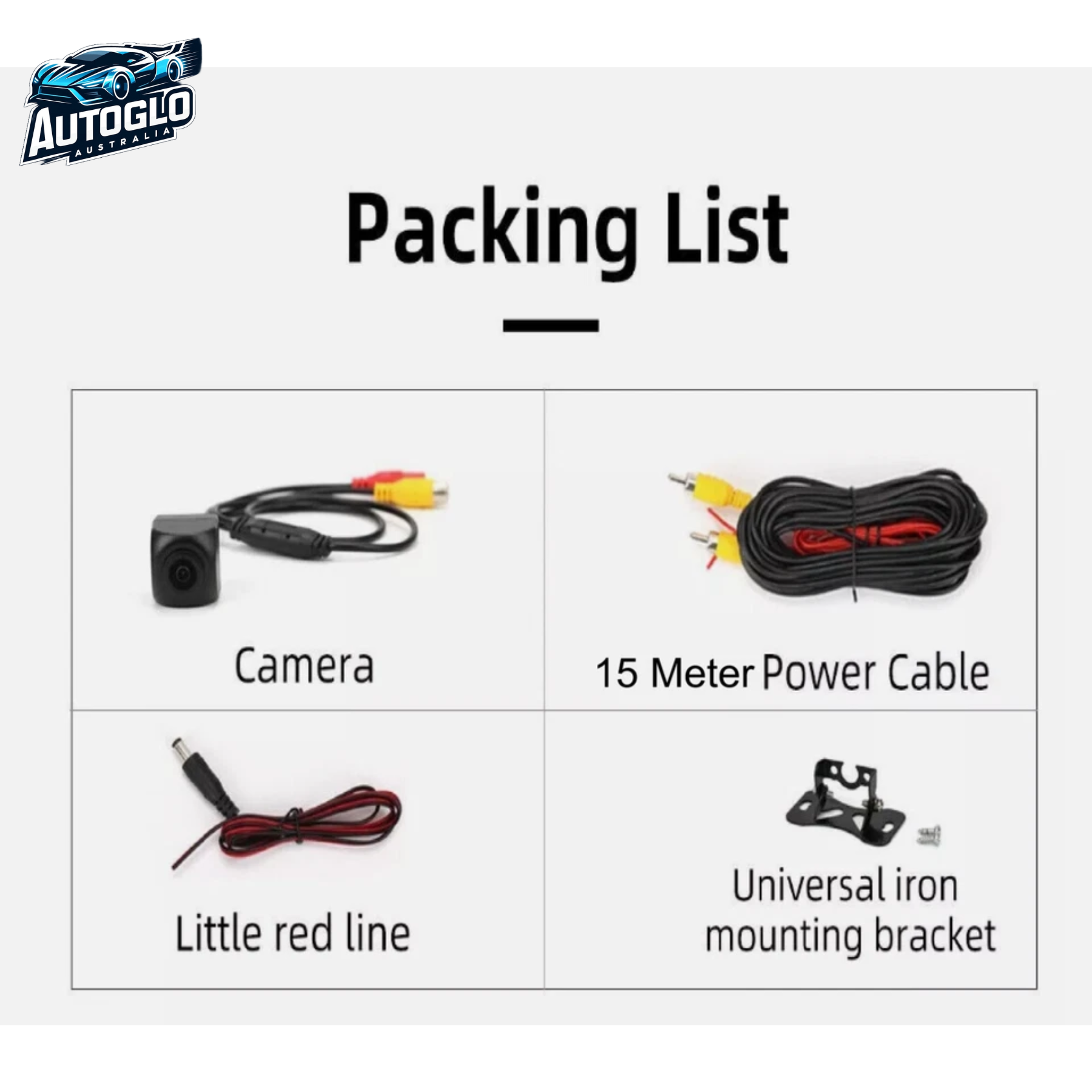

Package Includes:
• 1 x Car Reverse Camera
• 1 x 15M RCA Video Cable
• 1 x 1M Power Cable

Installation:

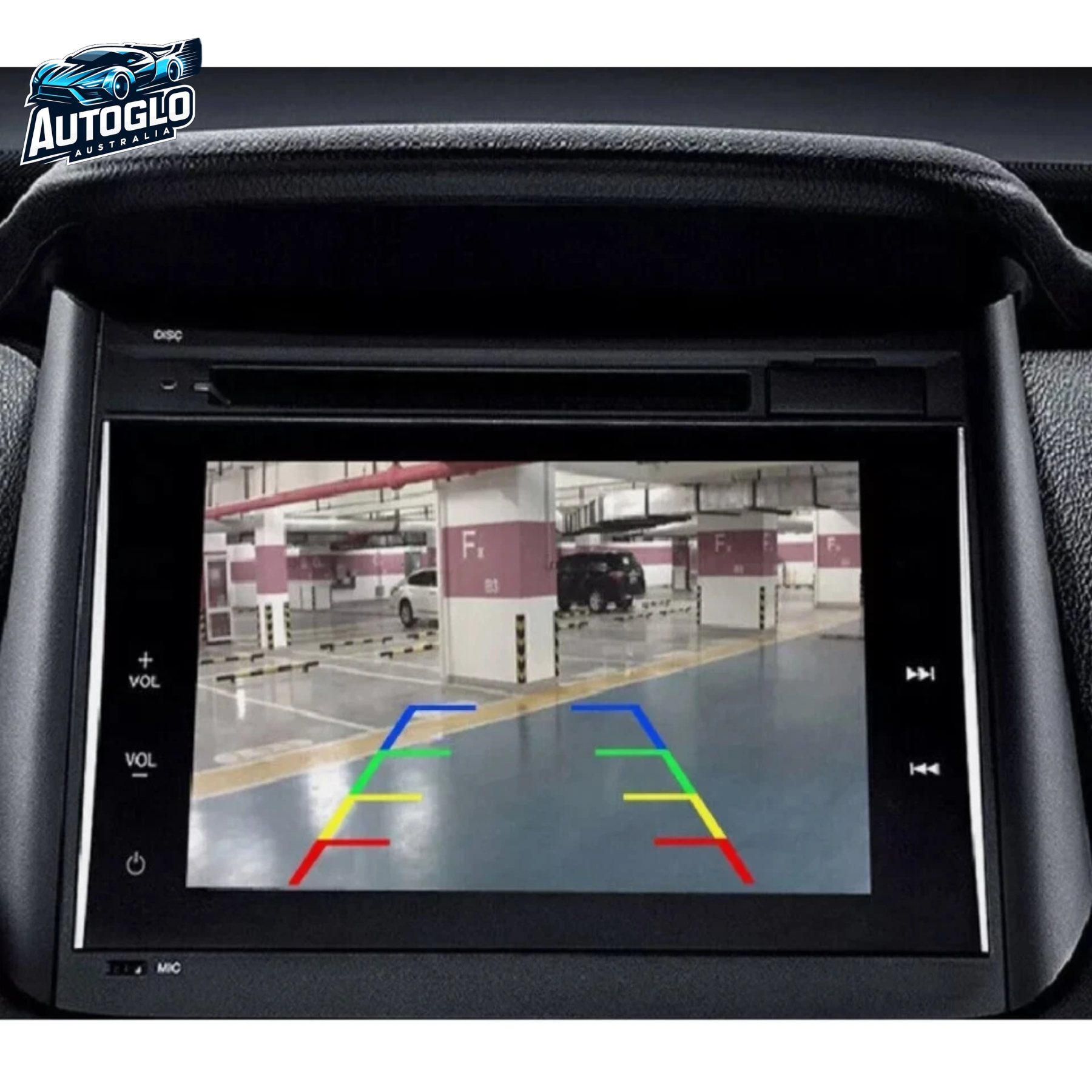

Connects easily to the reverse input of your compatible Android or aftermarket stereo via RCA.
Professional installation recommended for optimal wiring and waterproofing.
Ensure your head unit supports AHD input.

Item Features:

• AHD HD 1080P resolution for crystal-clear reverse vision
• 170° ultra-wide lens for maximum rear view coverage
• IP68/IP69 waterproof construction for all-weather reliability

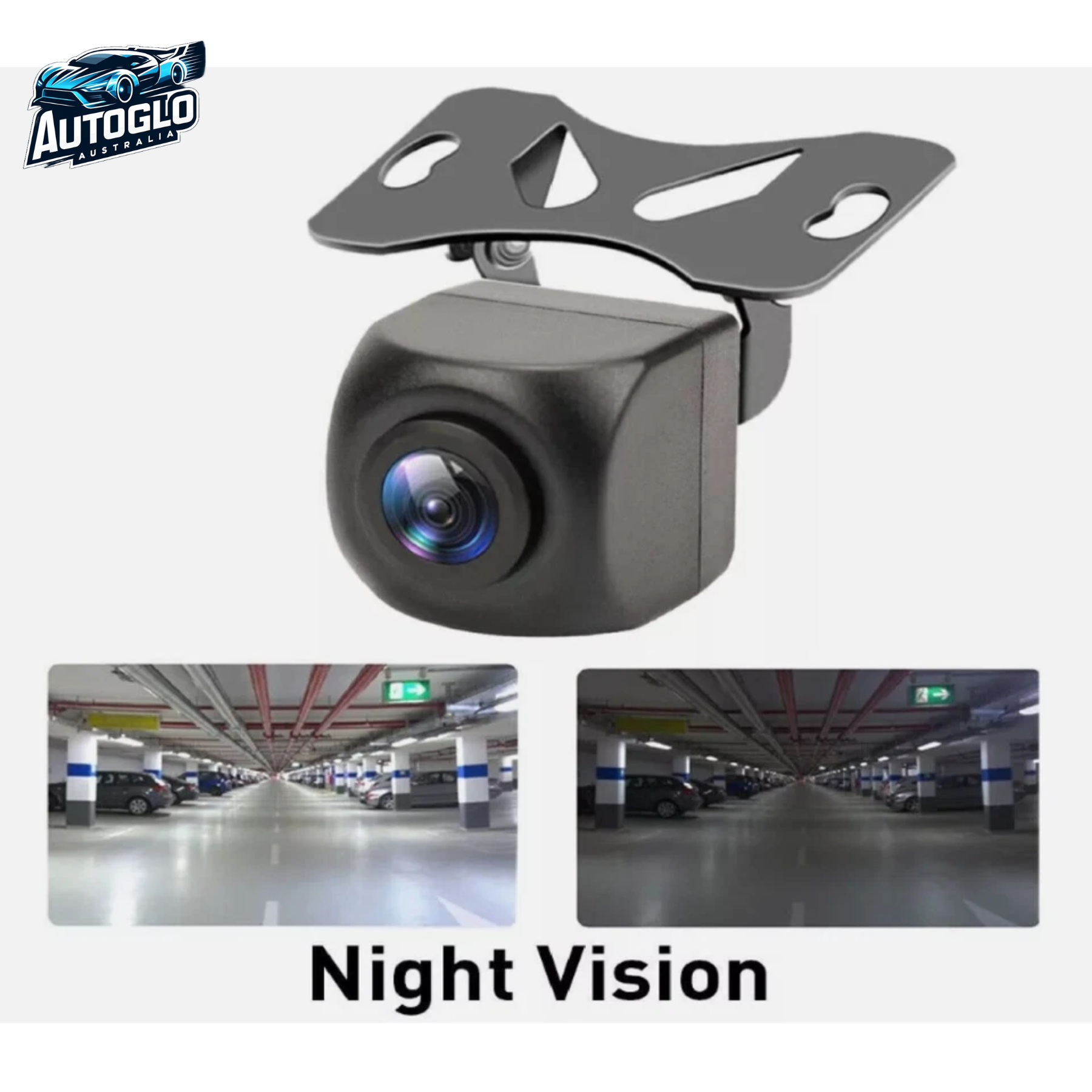

• IR night vision with LED support for low-light performance
• Compact, exterior-mount camera with low power consumption
• Universal RCA video connection (phono plug)
• Internal sync system for consistent video performance
• Automatic white balance, AGC, and BLC features
• Helps reduce blind spots and improve parking safety
• Easy to install and compatible with most 12V vehicles
• Durable design built for temperature extremes
• Plug-and-play setup with 15-meter video cable for extended reach

Specifications:

• Sensor Type: PC7440 1/4 Inch Color CMOS
• Resolution: 1080P @ 25 FPS
• TV System: NTSC
• Scanning System: 2:1 Interlace
• Effective Pixels: 800 TV lines
• Lens Angle: 170° (1.8mm lens)
• Video Output: 1.0Vpp, 75 Ohm
• Waterproof Rating: IP68-IP69
• Minimum Illumination: 0.2Lux/F1.8 (0 Lux with LED)
• Power Supply: DC 12V
• Current Consumption: ≤300mA
• Operational Temp: -30℃ to 65℃ (RH95% Max)
• Storage Temp: -40℃ to 75℃ (RH95% Max)
• Features: Automatic White Balance, AGC, BLC
• Cable Length: 15M RCA Video Cable

Note:

• Only compatible with stereos that support AHD signal input
• Not suitable for return or refund – confirm compatibility before purchase
• No return and no refund policy applies—choose carefully
• Professional installation is recommended
• Actual product appearance may vary from images shown
• Ensure camera compatibility with your car model and stereo unit

Warranty:
Manufacturer warranty of 12 months from the date of purchase
